170 Series Light-Duty Aluminum Slides

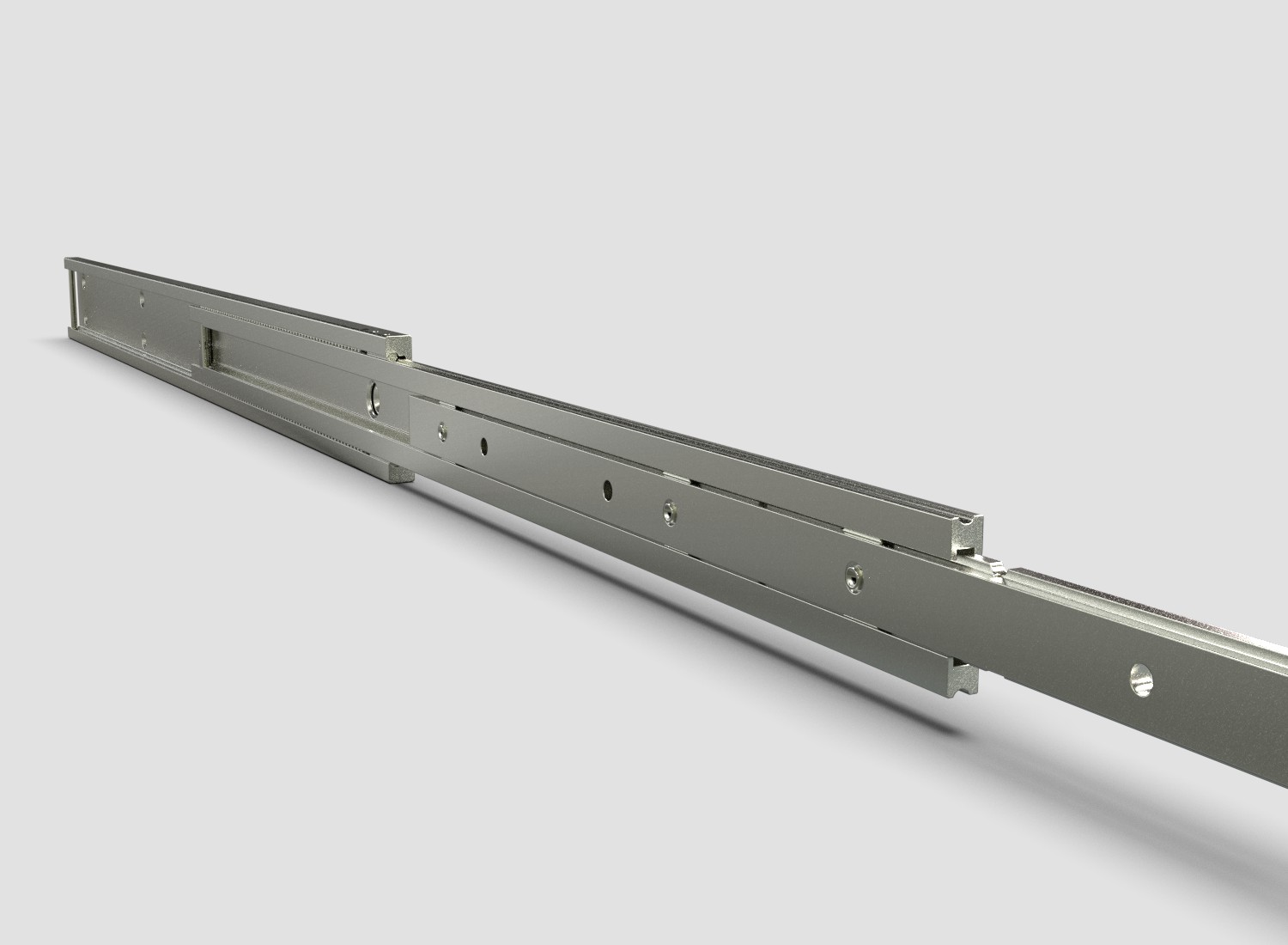

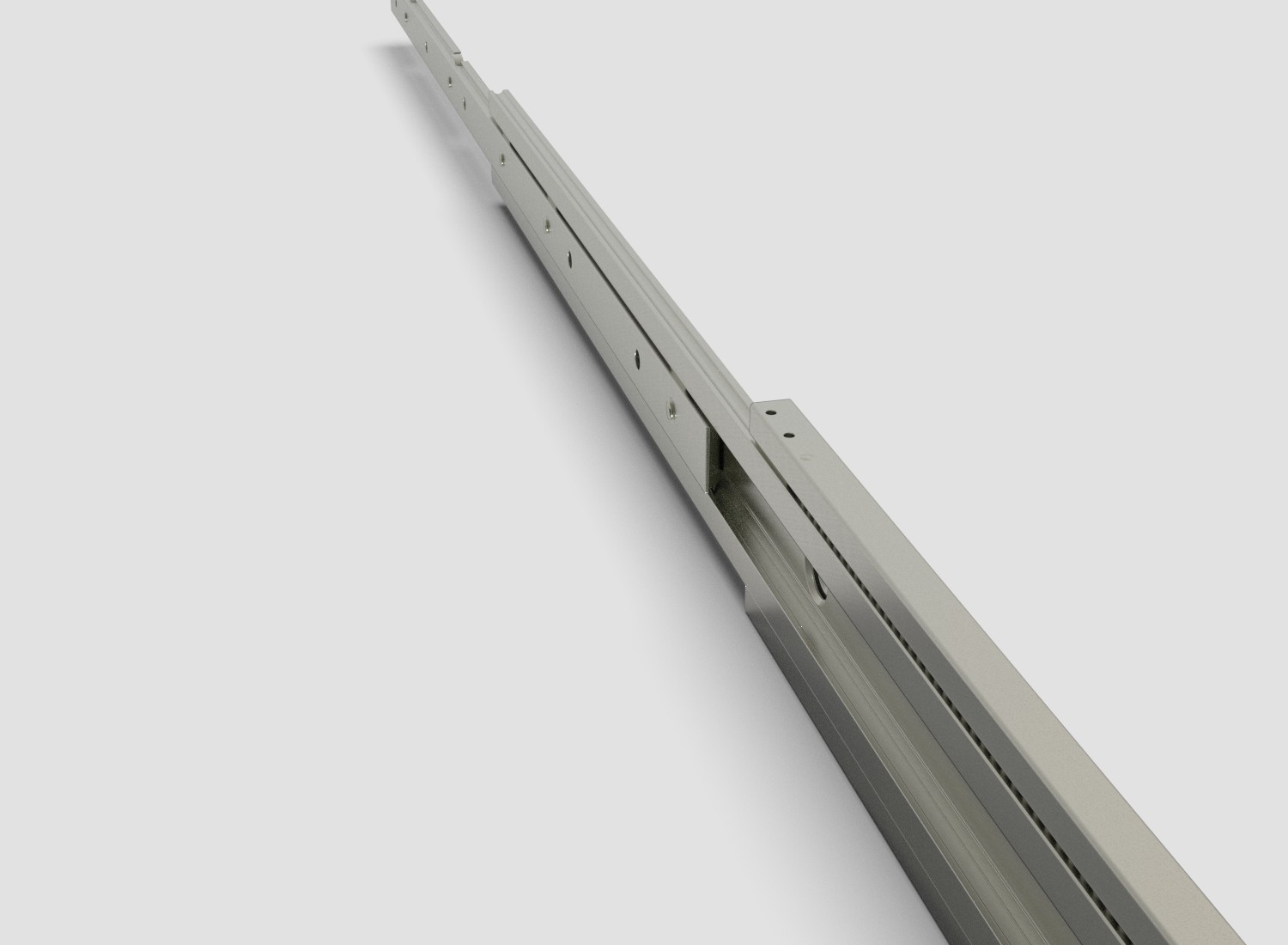

The 170 series aluminum slides are .375″ x 1.70″ tall and manufactured in high strength aluminum with MIL-A-8625A, Type II, Class 1 finishes. Optional finishes and customization are available. The 170 is a 3 section slide with a load rating of up to 188 lbs.

NEW

170HQD variant sustains standard 4″ overtravel at maximum load, preferred for improved access in limited space.

For Product Support, please contact your Local Representative 714-665-4400 or email salessupport@jonathanengr.com

Tech Specs
Custom Features
Custom Solutions
Downloads

170 Standard Features

Material: Aluminum
Load Rating: 80 to 140 lbs
Lengths: 10″ to 30″
Travel: 10″ to 30″
Lock open
Clear anodized finish
170 Bracketry Available: BK-38 & BK-40
HQD Variant
- Standard 4″ Overtravel
- Hybrid Configuration
- Sustained Maximum Load

Any length
Any travel
Custom hole patterns and sizes
Custom finishes

COTS Trays
Ruggedized Assemblies
Integrated Kits
Sheet Metal Assemblies
Cable Management
Bracketry
Hardware Kits
Trays
Precision Machined Components

170T Series

170T Catalog Drawing

170 Series

170FB Catalog Drawing

170QD

170QD Catalog Drawing

170QD

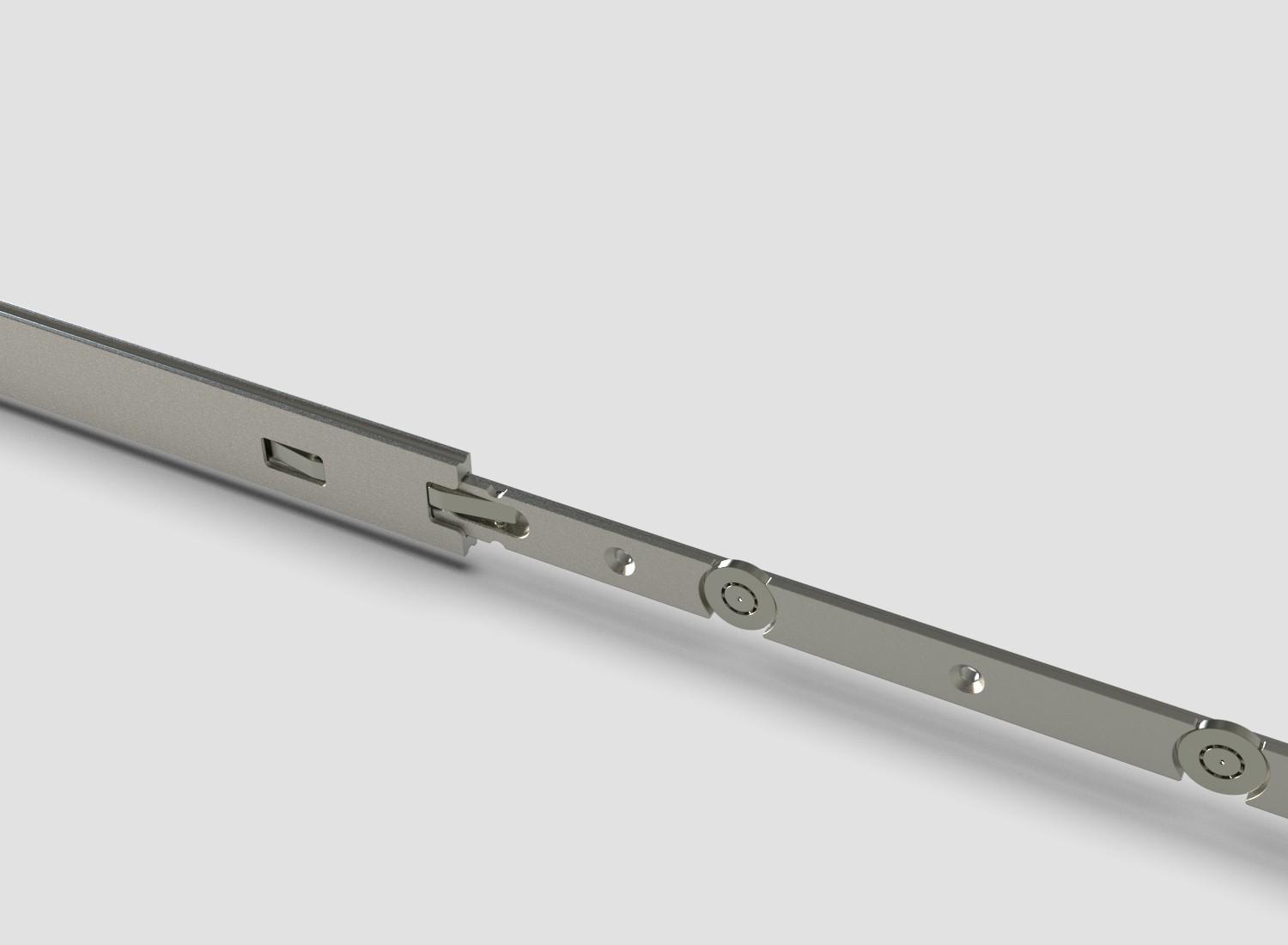

The inner member includes a quick disconnect for more efficient installation, servicing, and interchangeability.

170T

The 170T contains a removable T-section.

170FB

The FB Modifier indicates that the slide will utilize a full ball bearing assembly.

170HQD

Sustained maximum load through hybrid configuration with standard 4″ overtravel
