Aluminum Telescopic Slides

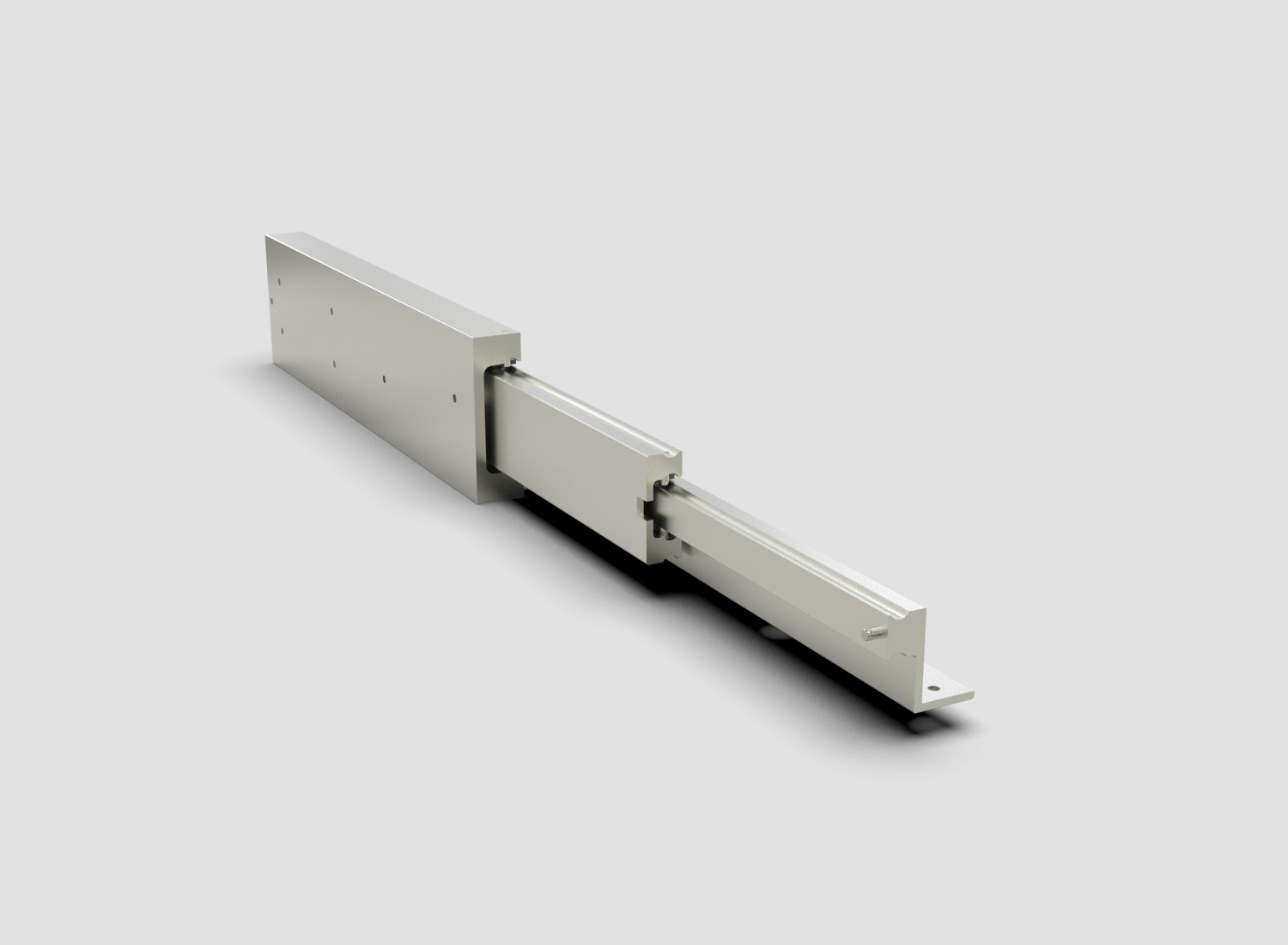

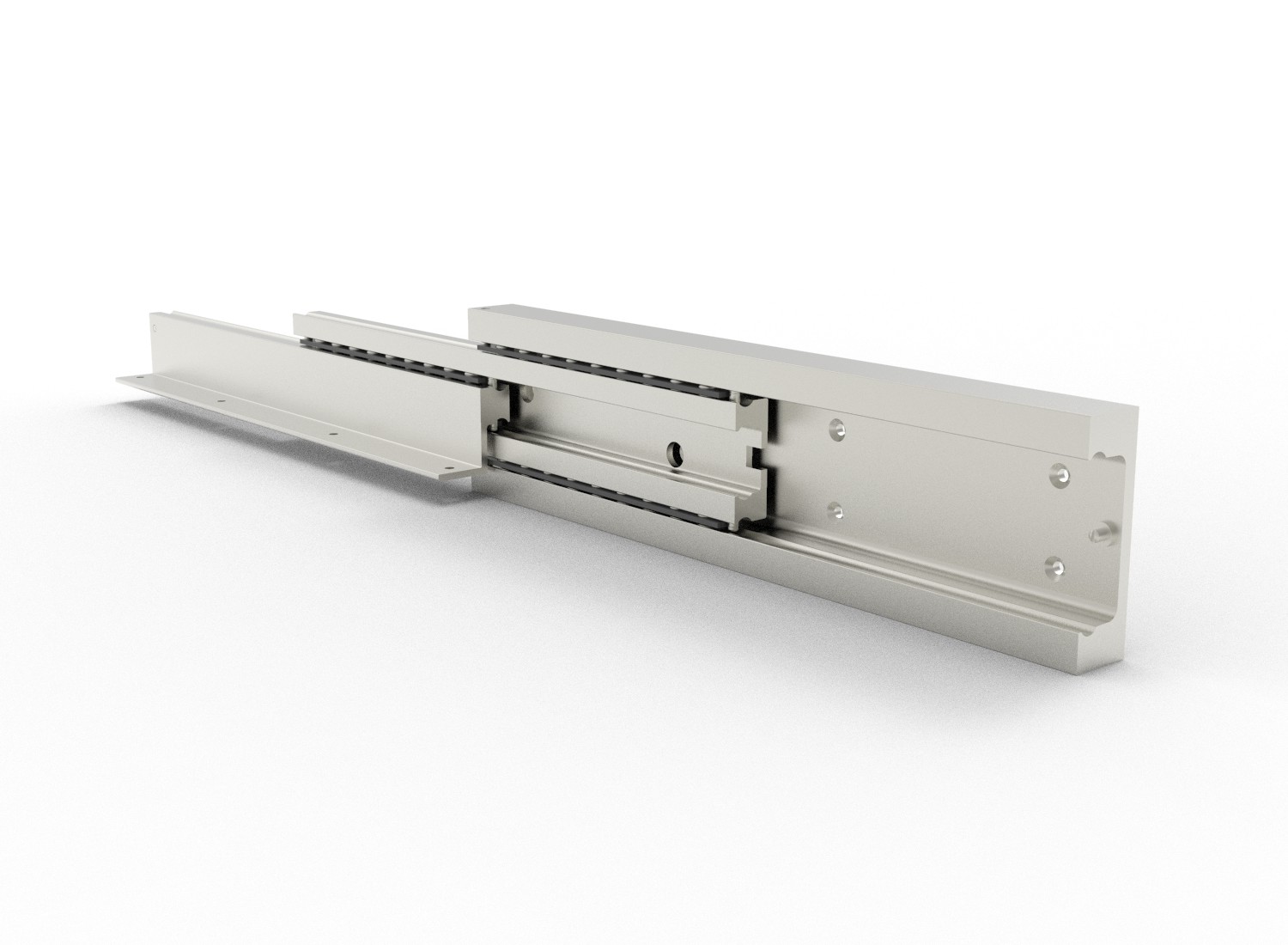

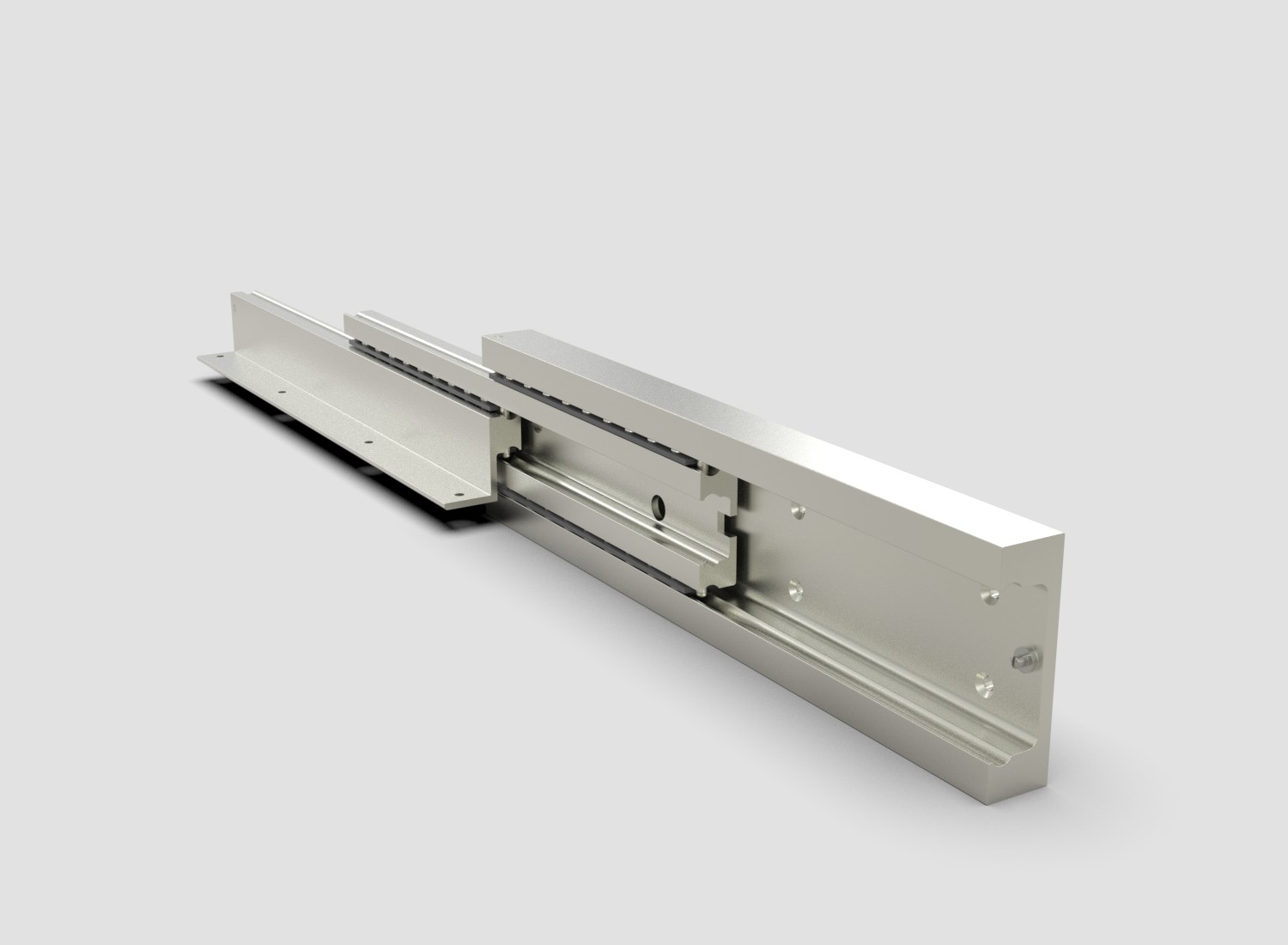

181 Series Heavy-Duty Aluminum Slides

The 181 series aluminum slides are 1.84″ wide x 5.00″ tall and manufactured in high strength aluminum with MIL-A-8625A, Type II, Class 1 finishes. Optional finishes and customization are available. The 181 is a 3 section slide with a load rating of up to 980 lbs.

For Product Support, please contact your Local Representative 714-665-4400 or email salessupport@jonathanengr.com

Tech Specs
Custom Features
Custom Solutions
Downloads

181 Standard Features

Material: Aluminum
Load Rating: 565 to 980 lbs
Lengths: 14″ to 36″
Travel: 13″ to 35″
Full ball bearing
Clear anodize finish

Any length
Any travel
Custom hole patterns and sizes
Shock absorption (Shock blocks)
Integrated closed position captivity(Captive screw)
Locking mechanisms (81/181 series locking devices)
Custom finishes

COTS Trays
Ruggedized Assemblies
Integrated Kits
Sheet Metal Assemblies
Cable Management
Bracketry
Hardware Kits
Trays
Precision Machined Components

181

181 Catalog Drawing
