227 Series Light-Duty Aluminum Slides

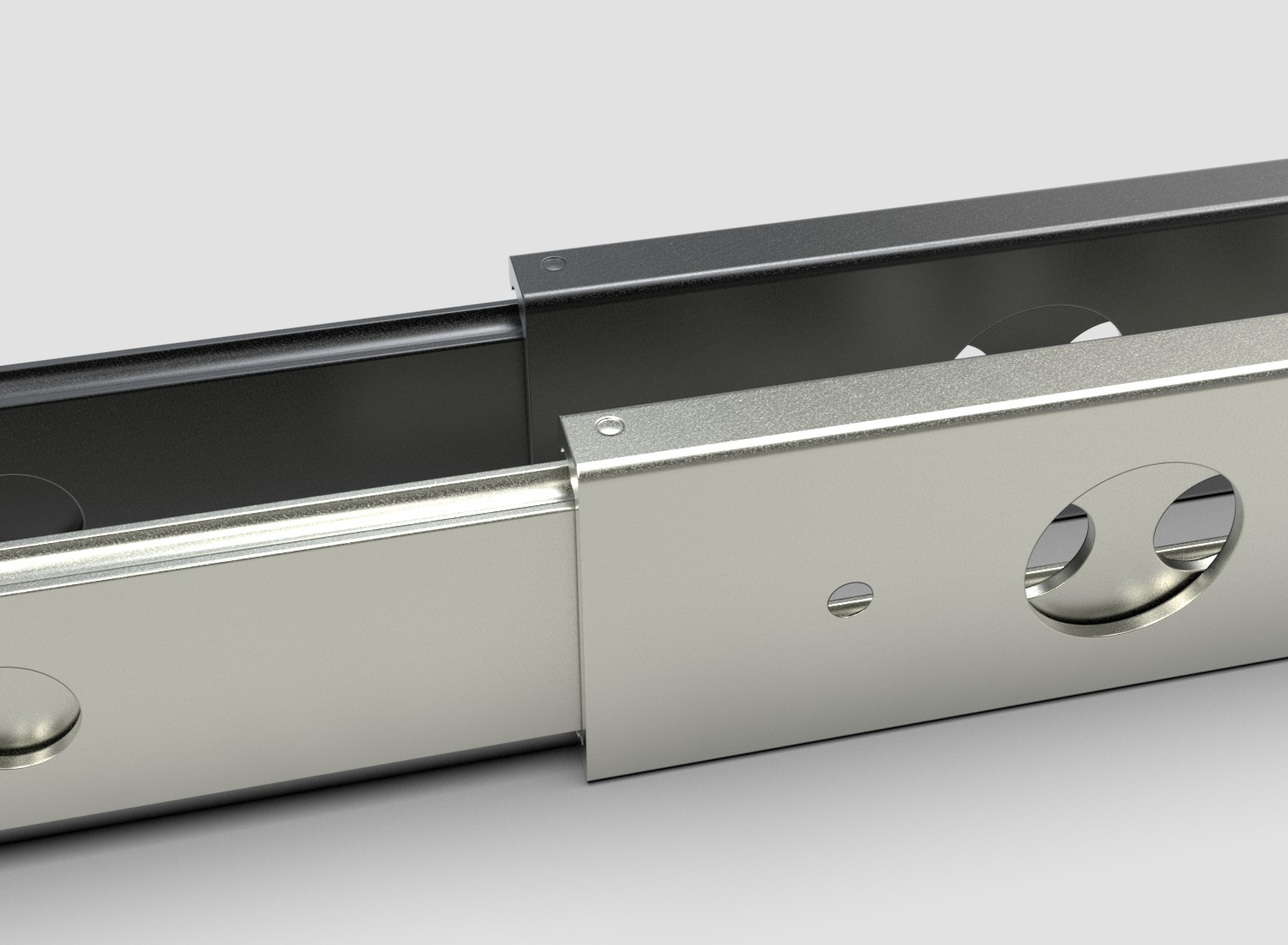

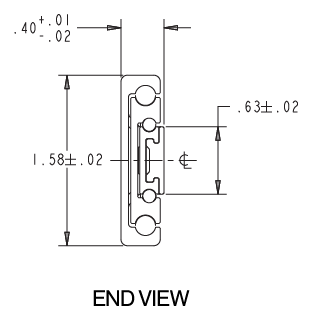

The 227 Series is an economical, medium duty workhorse. At 0.40″ wide x 1.58″ tall, the 227 possesses aluminum members that contain lightening holes for reduced weight, and are able to maintain the high loads of its competitors. This slide comes standard with a quick disconnect for added ease of installation.

Tech Specs
Downloads

227G Standard Features

Material
- High Strenght Aluminum Alloy
- Stainless Steel
Load Rating: 80 to 120 lbs
Lengths: 6″ to 26″
Travel: 6″ to 26″
Full ball bearing
Finishes
- Clear Anodized (Aluminum)
- Passivated (Steel)

227G

227G Series Catalog Drawing

227GS

227GS Series Catalog Drawing

227G

227 With mounting holes for size #8 fasteners.

227TS

227 Series with integrated Compression Spring

E227TS/E227TSG

The Executive 227 includes black anodized finish, polymer balls, compression spring and holes for #8 fasteners (E227TSG). More information about all of our Executive Series slides here.
