Aluminum Telescopic Slides
250 Series Light-Duty Aluminum Slides
The 250 Series is a lightweight aluminum profile whose dimensions are 0.25″ wide x 1.72″ tall. The 250 Series has a load rating of 45-110 lbs, and its commonly used for lightweight Defense and Aerospace applications.
NEW
250HQD variant sustains standard 4″ overtravel at maximum load, preferred for improved access in limited space.
- Tech Specs
- Downloads
250 Standard Features
- Material
- High Strenght Aluminum Alloy
- Stainless Steel
- Load Rating: 45 to 110 lbs
- Lengths: 10″ to 28″
- Travel: 9″ to 27″
- Finishes
- Clear Anodized (Aluminum)
- Passivated (Steel)
- HQD Variant
- Standard 4″ Overtravel
- Hybrid Configuration
- Sustained Maximum Load
250 Series
250QD Catalog Drawing

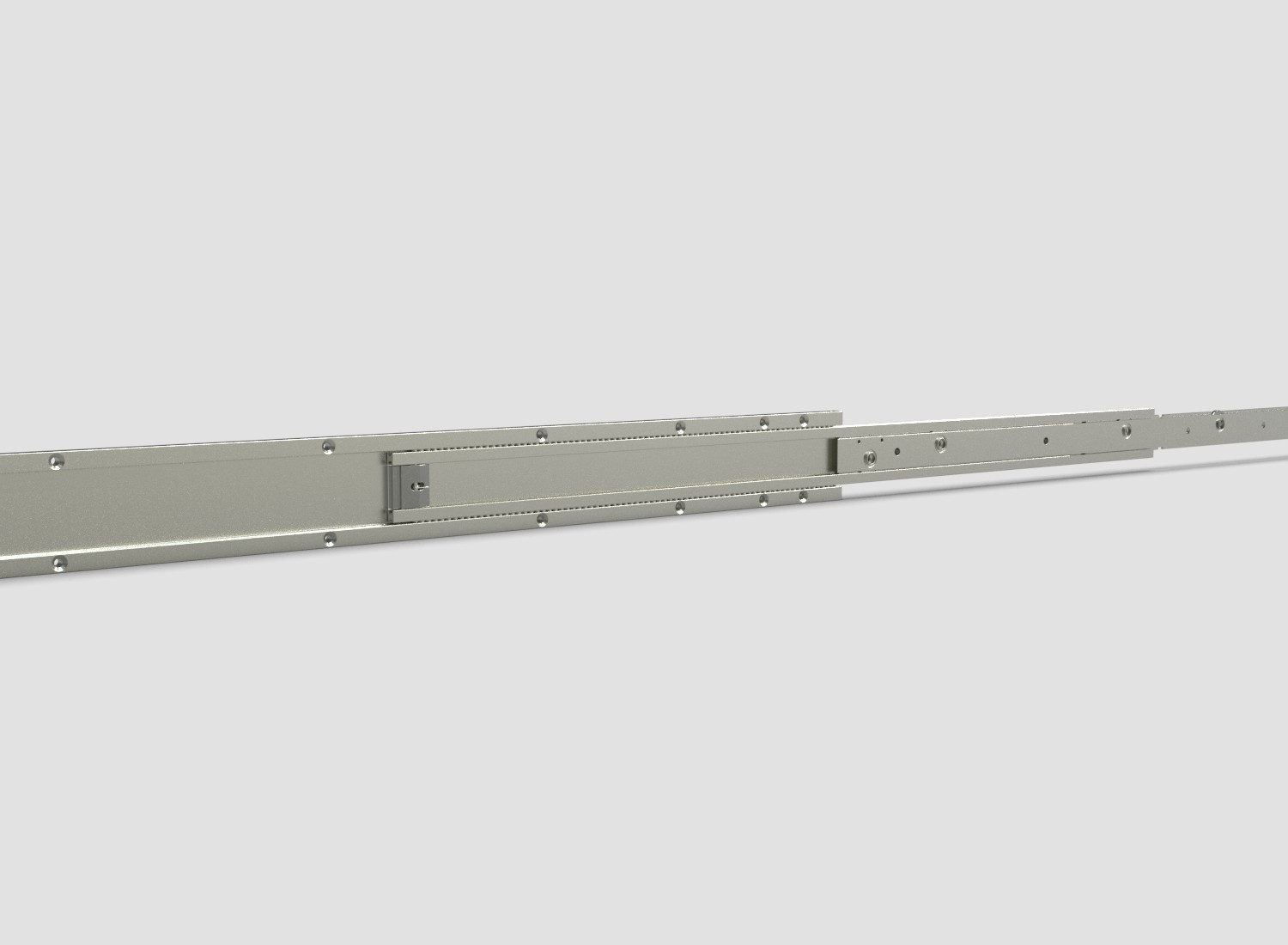

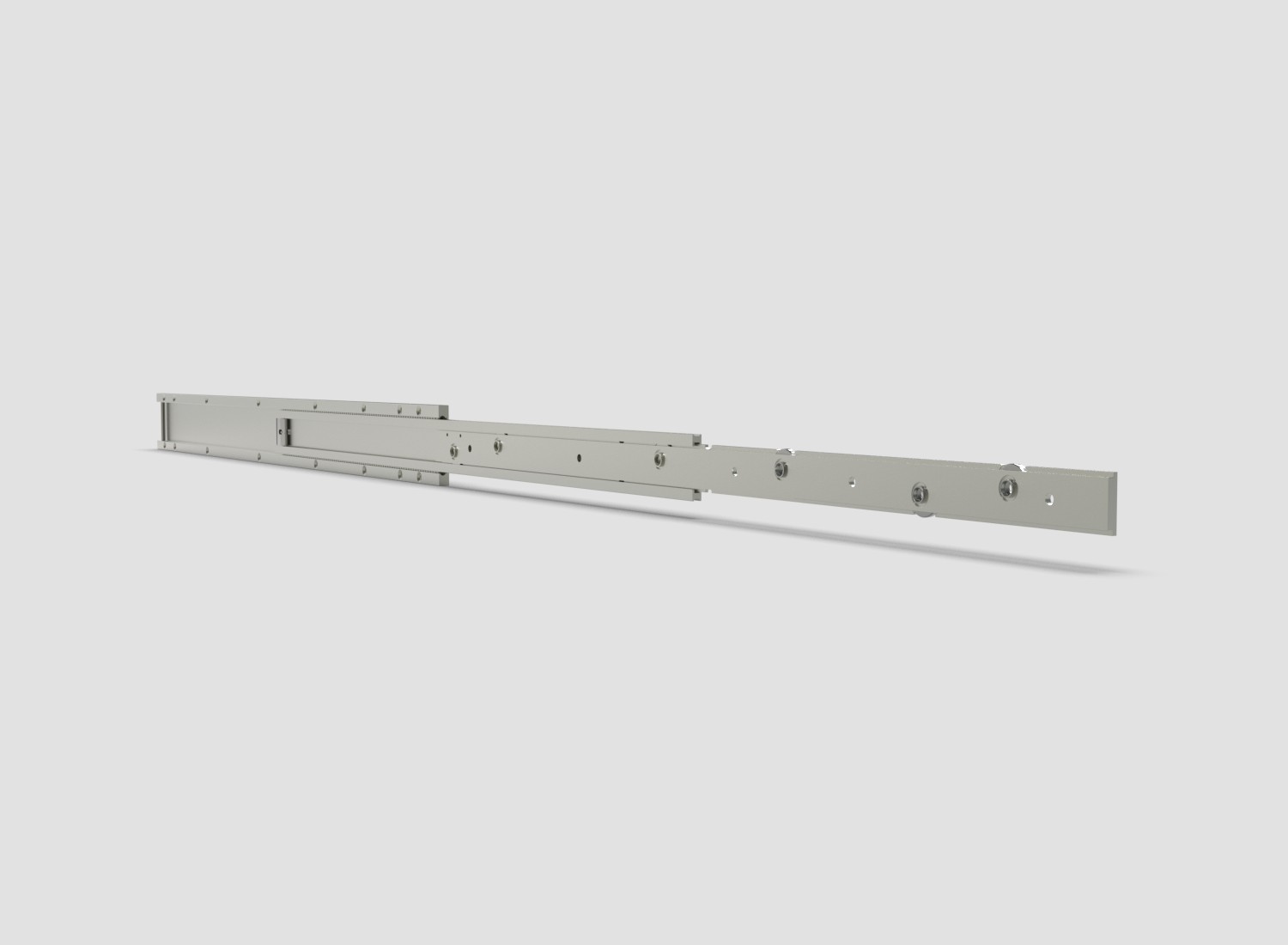

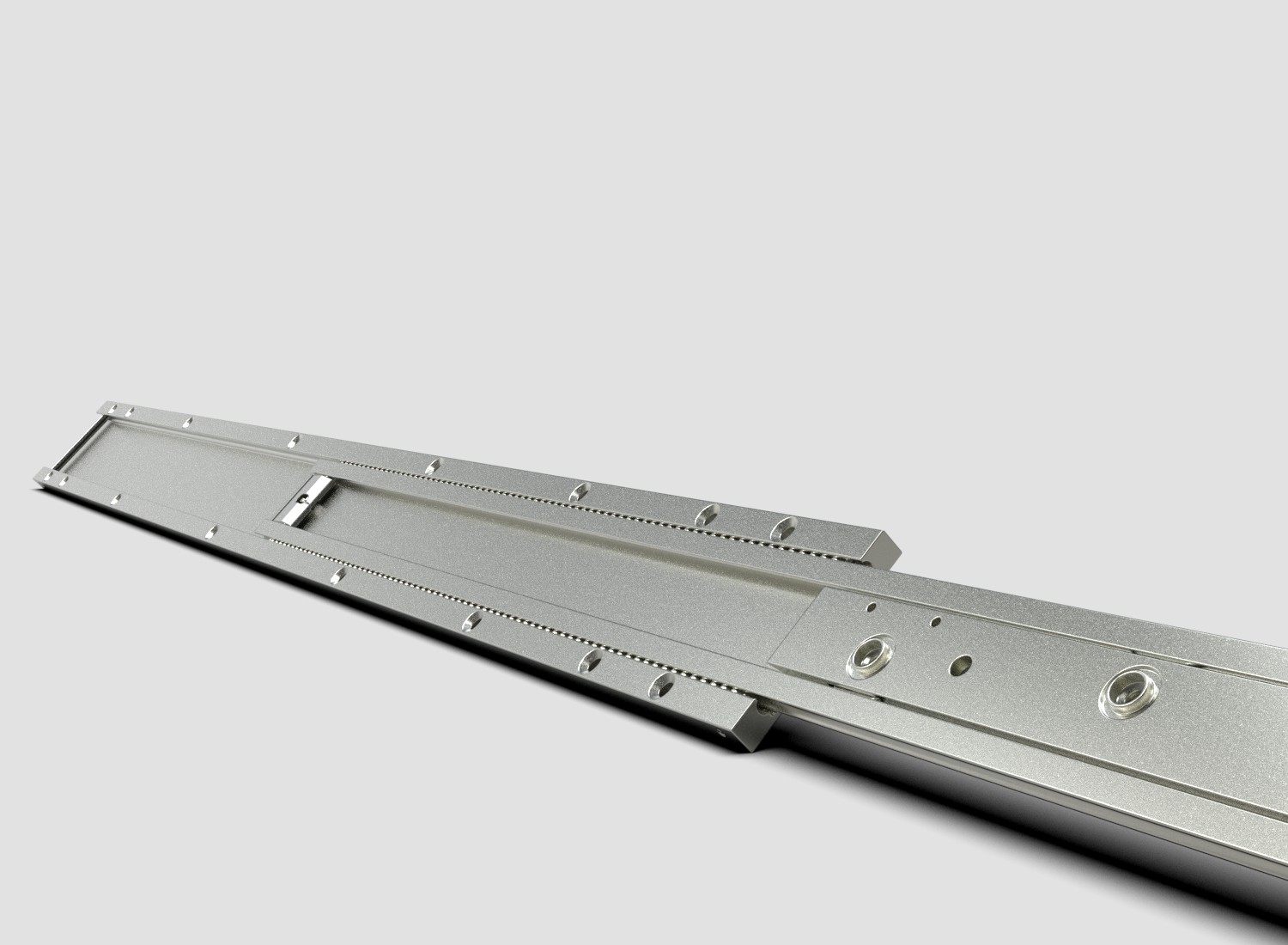

250QD
The inner member includes a quick disconnect for more efficient installation and servicing.
250QDA
The slide possesses a quick disconnect feature as well as an adjustable shock block for increased security and multi-axis absorption.
250HQD
Sustained maximum load through hybrid configuration with standard 4″ overtravel
