Aluminum Telescopic Slides

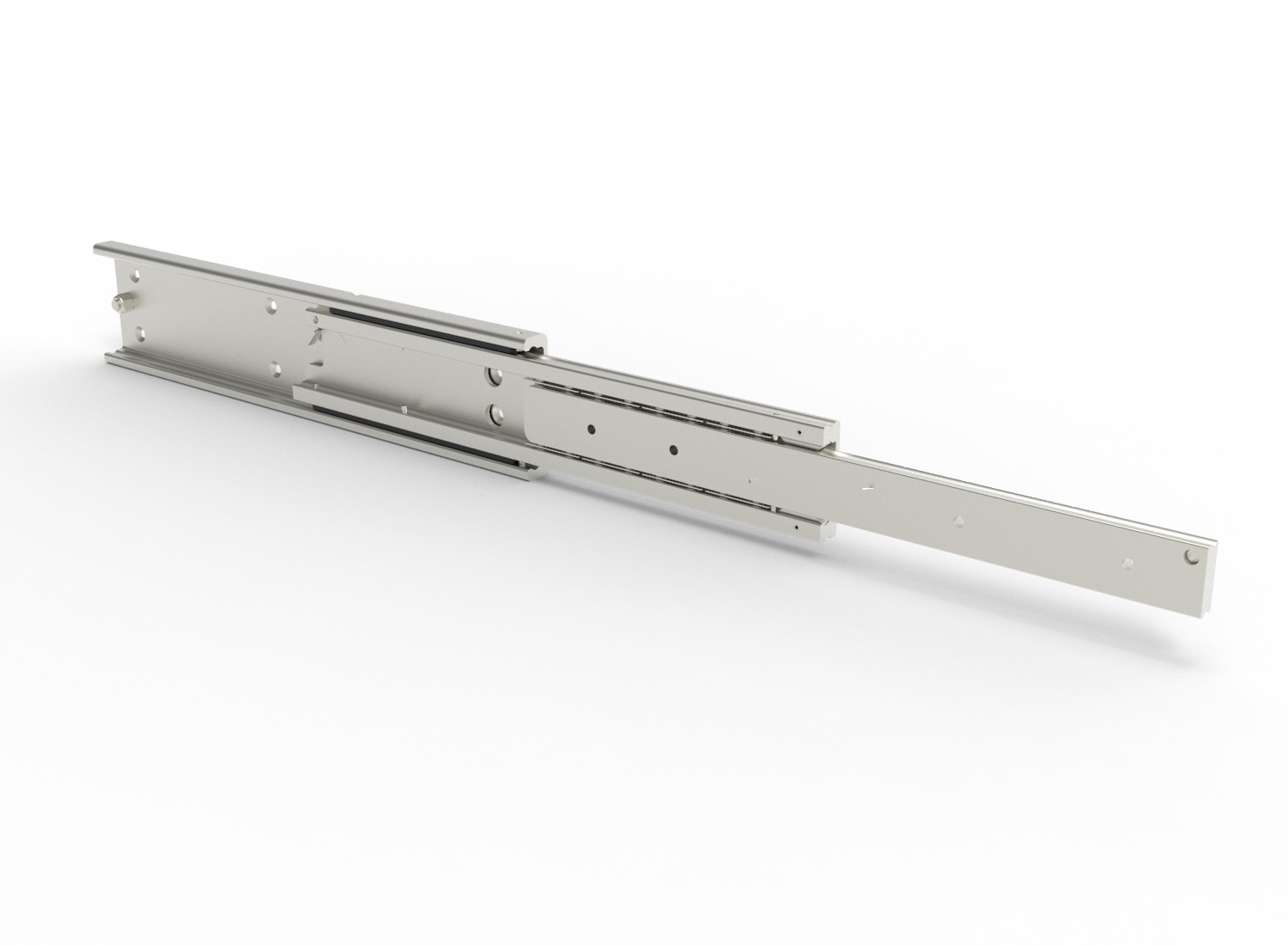

325 Series Heavy-Duty Aluminum Slides
The 325 series aluminum slides are 0.75″ wide x 3.00″ tall and manufactured in high strength aluminum with MIL-A-8625A, Type II, Class 1 finishes. Optional finishes and customization are available. The 325 is a 3 section slide with a load rating of up to 550 lbs. per pair and is ideal for heavy duty applications.
- Tech Specs
- Custom Features
- Custom Solutions
- Downloads
325 Standard Features
- Material: Aluminum
- Load Rating: 430 to 550 lbs
- Lengths: 12″ to 36”
- Travel: Equal to slide length
- Clear anodize finish
- Any length
- Any travel
- Custom hole patterns and sizes
- Custom finishes
- COTS Trays
- Ruggedized Assemblies
- Integrated Kits
- Sheet Metal Assemblies
- Cable Management
- Bracketry
- Hardware Kits
- Trays
- Precision Machined Components
325
325 Catalog Drawing
325QD
The inner member includes a quick disconnect for more efficient installation and servicing.
325QDS
Slide profile includes quick-disconnect feature within the inner member and stop-open feature when fully extended.
325L
Slide profile contains lock open and no disconnect.
