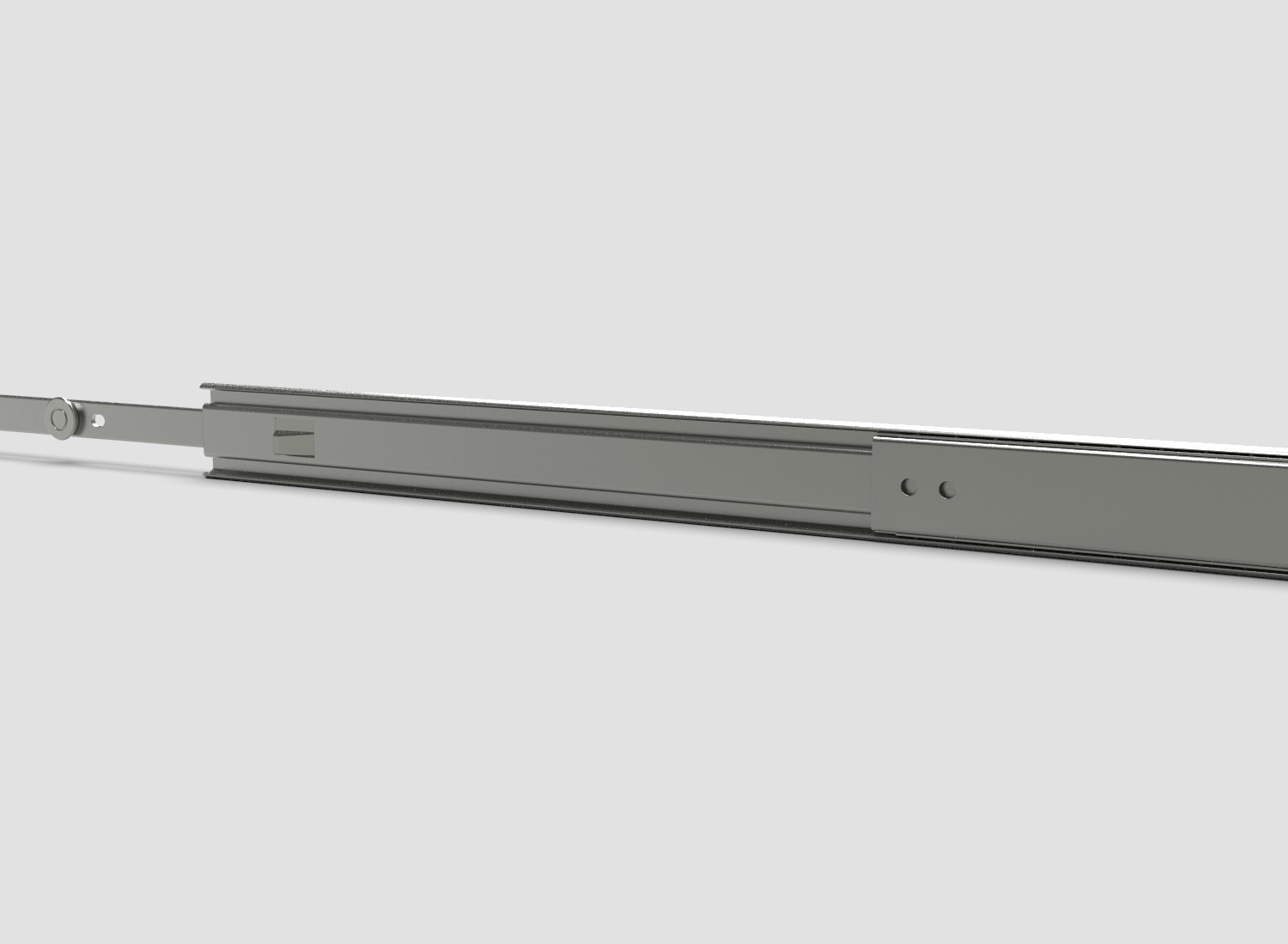

375 Series Light-Duty Steel Slides

The 375QD series steel slides are 1.50″ x .38″ wide and manufactured in carbon steel with standard zinc plating. The 375QD is a 3 section slide with an inner member on rollers and intermediate on ball bearings with a load rating of up to 85 lbs.

For Product Support, please contact your Local Representative 714-665-4400 or email salessupport@jonathanengr.com

Tech Specs
Downloads

375

Material: Steel
Load Rating: 50 to 85 lbs
Lengths: 14″ to 28″
Travel: 15″ to 29″
Stop open, free to close
Quick disconnect (375QD)
Interchangeability
Supplied with BK-6 (bracketry with adjustability range of .50″ and mounting hardware)
Clear zinc finish
375 Bracketry Available:
- BK-6
- BK-23

375QD

375QD Catalog Drawing

375QD

This series includes a quick-disconnect feature for effortless installation and interchangeability.
