9000 Series Heavy-Duty Steel Slides

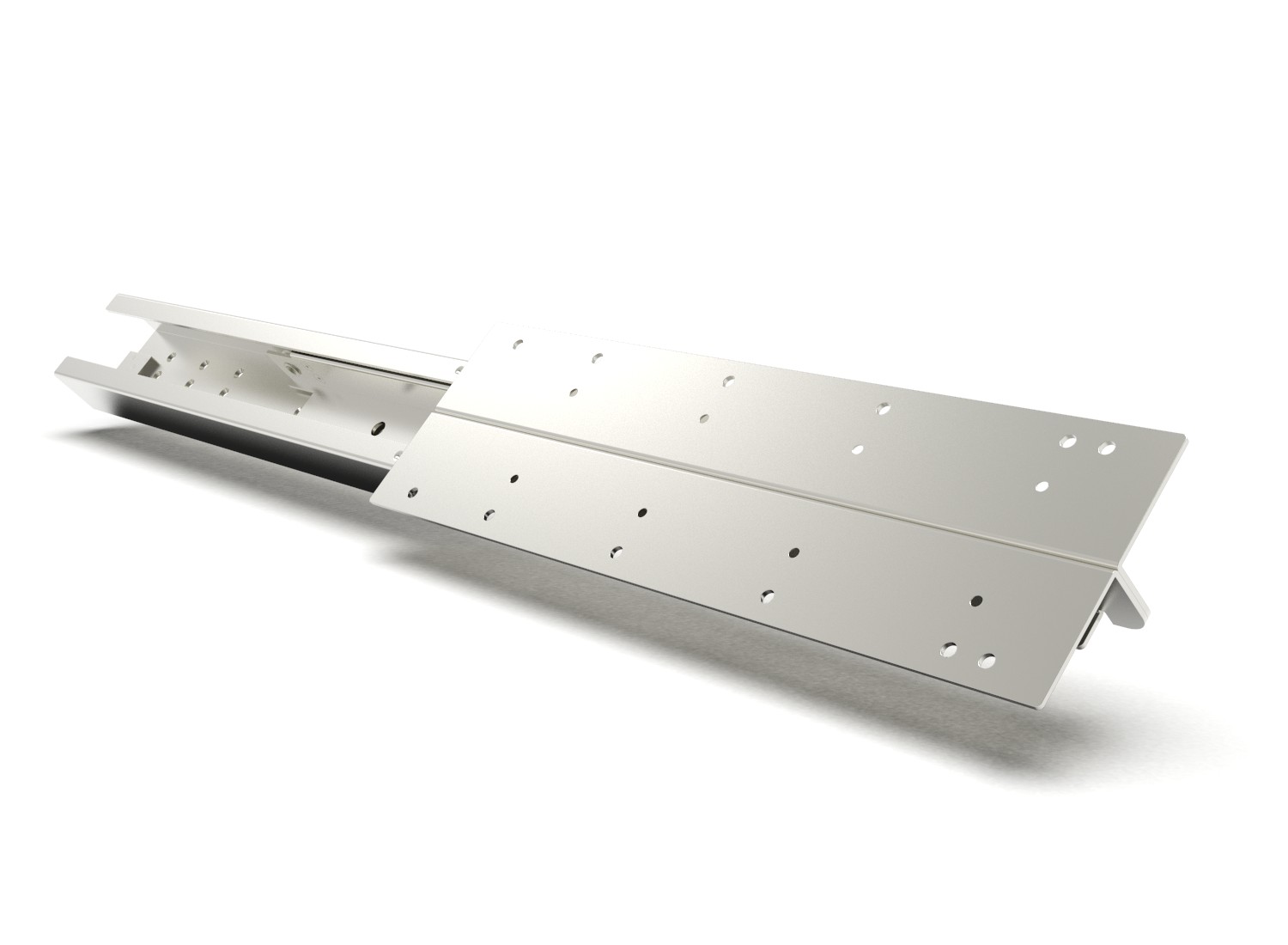

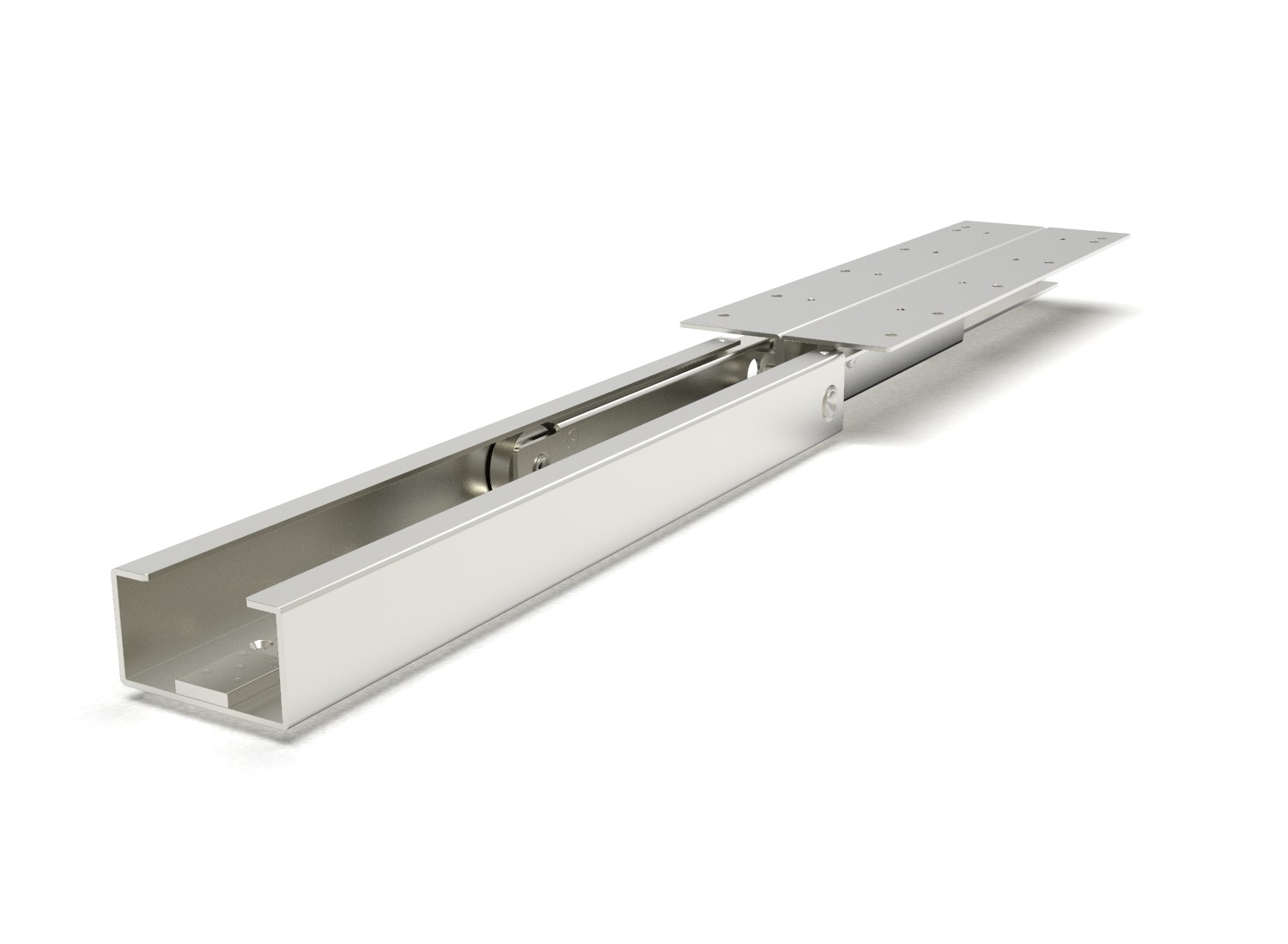

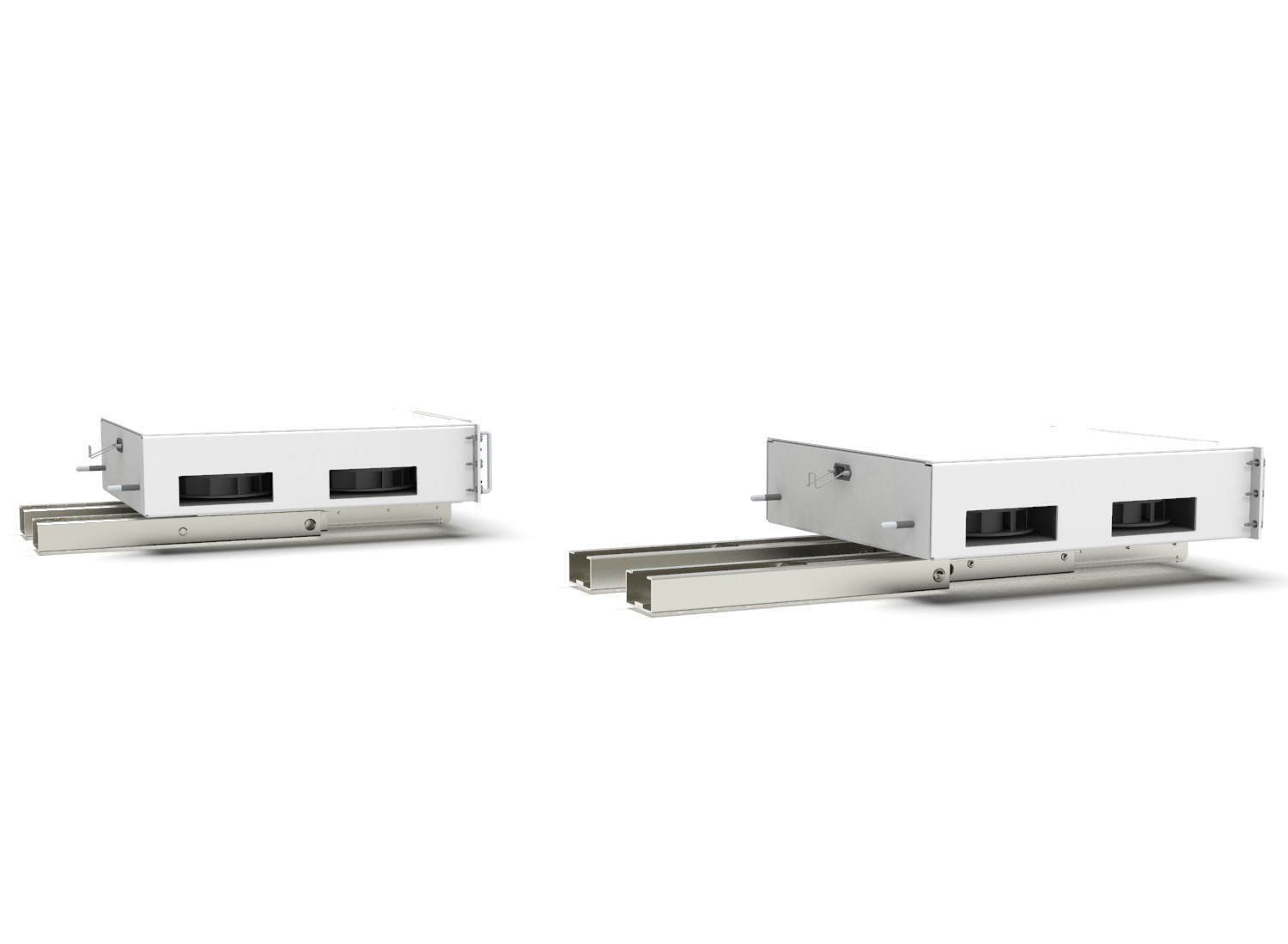

The 9000 series is a full extension undermount slide and is available with many new unique features in both construction and performance. The 9000 is 5.20″ x 2″ and has a load rating of 155-400lbs. Heavy duty rollers, high impact in-stops and out-stops, convenient lock operation, full extension travel, and disconnect of the drawer member, all blend themselves to handle high loads in a small overall footprint.

For Product Support, please contact your Local Representative 714-665-4400 or email salessupport@jonathanengr.com

Tech Specs
Custom Features
Downloads

9000

Material: Steel
Load Rating: Up to 400 lbs
Lengths: 12″ to 28″ (Standard)
Travel: 12″ to 28″ (Standard Full Extension)
Finish: Zinc with clear chromate, RoHS compliant
Stops: Open & Closed for high impact forces
Locking System: (L) lock open, (LC) lock closed, (LLC) locking open & closed
Disconnect: Inner member disconnect
High cycle counts, load performance
Options Available:
- Finish
  - Black Finish
  - Zinc w/ yellow chromate
  - High salt spray resistance
- Material: Stainless Steel
- Alternate lengths and travel combinations
- Value added hardware

Options Available:
- Finish
  - Black Finish
  - Zinc w/ yellow chromate
  - High salt spray resistance
- Material: Stainless Steel
- Alternate lengths and travel combinations
- Value added hardware
Shorter or longer lengths (10″ up to 60″)
Any travel (under travel or over travel)
Dual direction travel (pass thru drawers)
Stainless Steel
Custom hole patterns and sizes
Addition of thread studs or inserts for faster assembly time
Reconfiguration of the top flange shape

9000

9000 Catalog Drawing

9000L

9000L Catalog Drawing

9000LC

9000LC Catalog Drawing

9000LLC

9000LLC Catalog Drawing

9000L

9000 Series equipped with Lock-Open feature

9000LC

9000 Series with Lock Closed feature

9000LLC

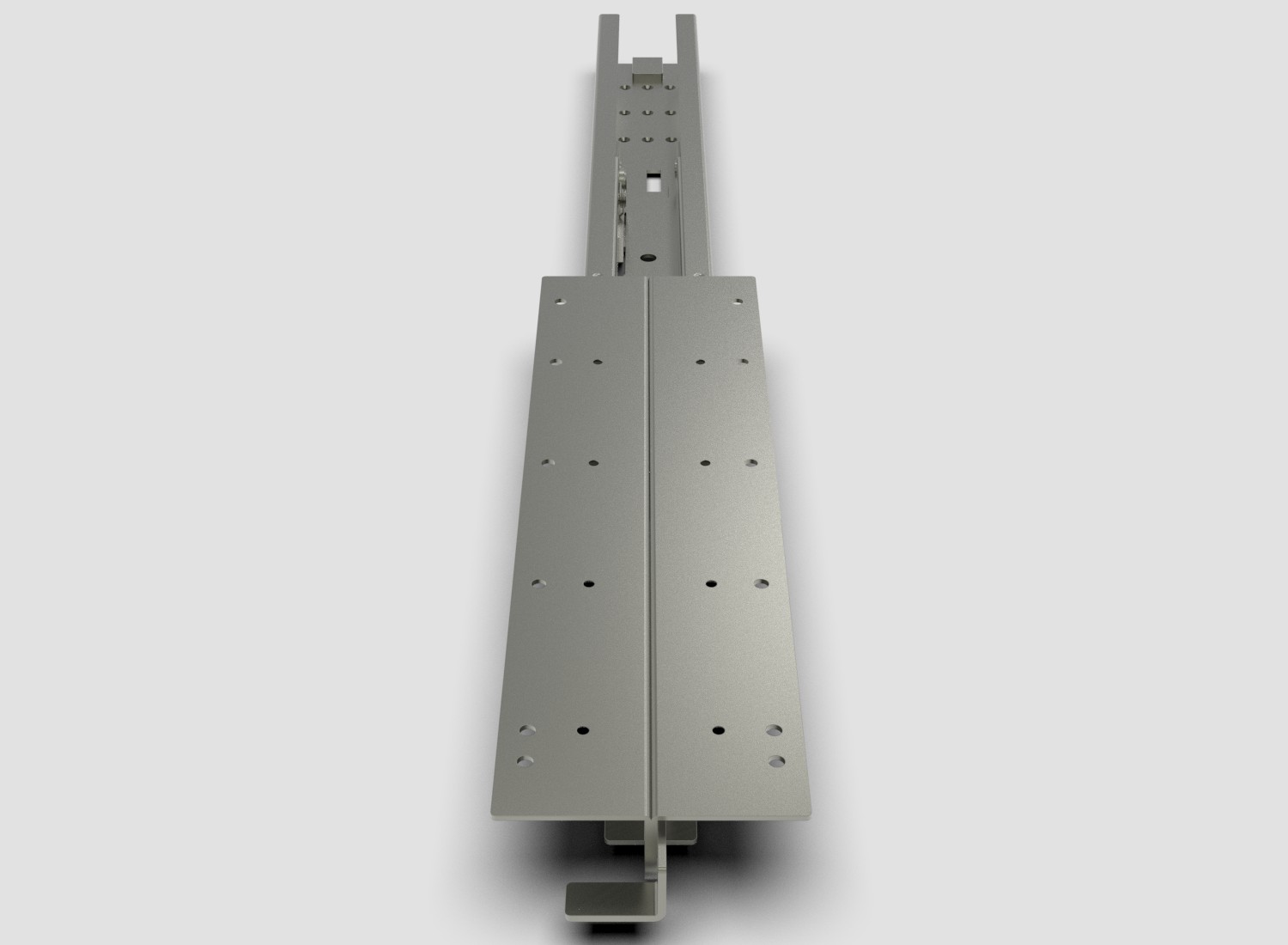

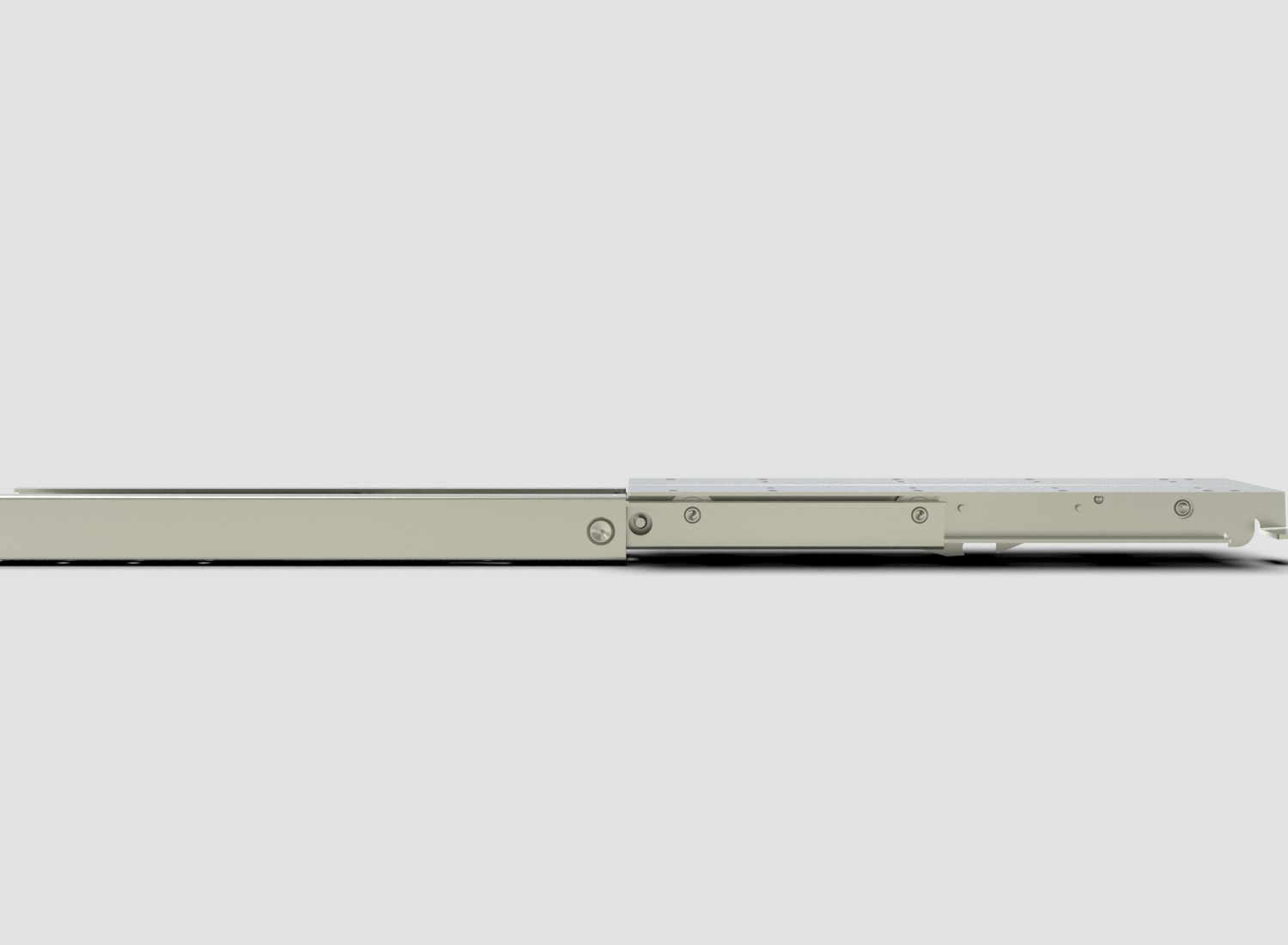

9000 Series with Lock Open-Lock Closed feature
