Trays & Shelves
Commercial 2U Trays

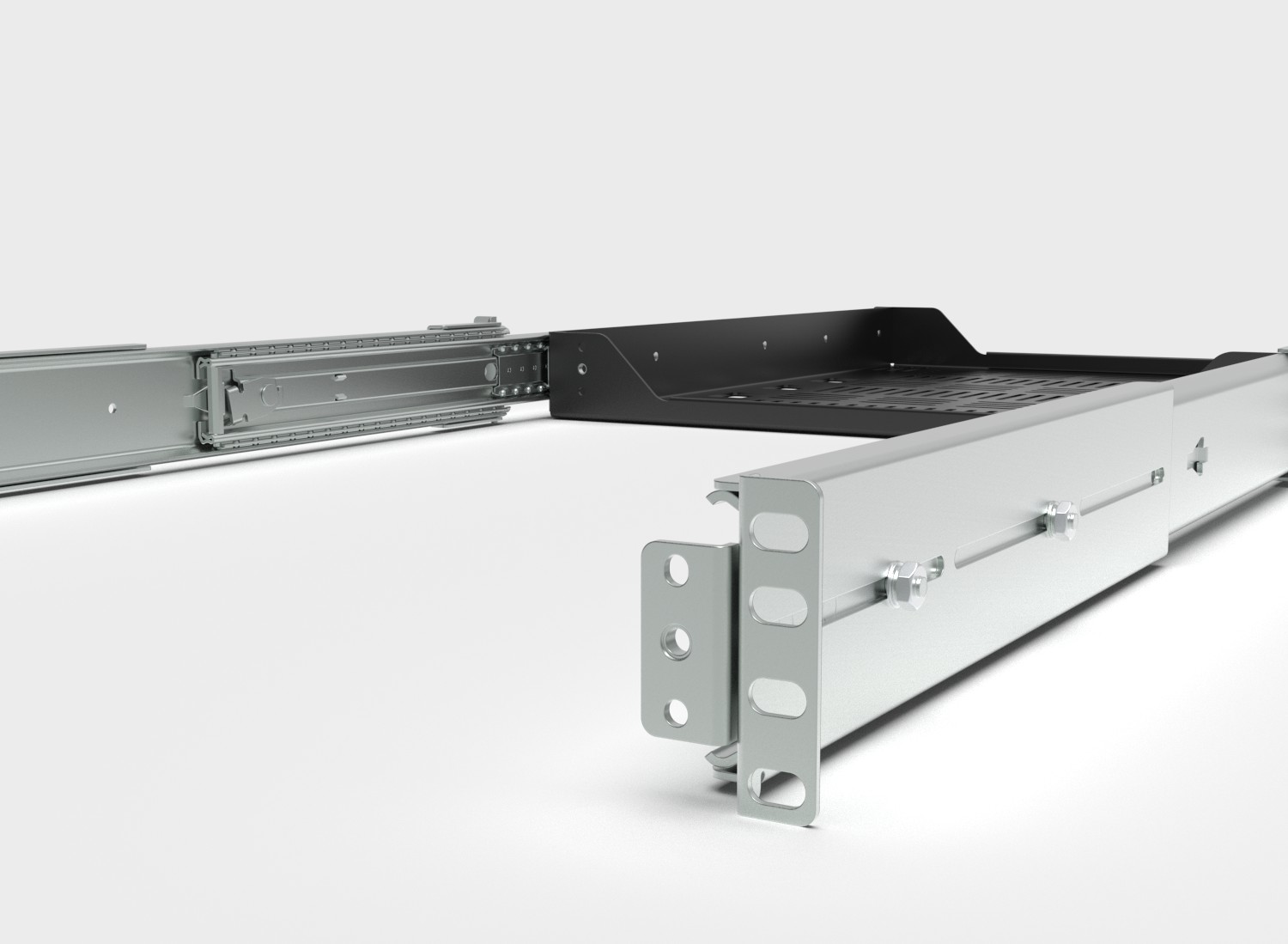

Jonathan Engineered Solutions standard Commercial 2U trays and shelves are available with a variety of features right off the shelf. The T2U-100 rack shelf is a 2U high standard light duty electronic rack shelf that comes as a complete assembly as shown and easy to install in most EIA racks. The standard T2U-100 shelf assembly includes 370 series slides which lock open, are quick disconnectable, and have adjustable brackets attached. The rack shelf assembly has front mounted panel fasteners to lock the tray closed, and has a load rating of 165lbs per shelf.
Optional upgrades such as cable management, anti-slip pads or server straps are available upon request.
Typical Applications:
- Server racks
- Telecommunication racks
- Battery trays
- Air traffic control equipment
- Portable electronics
- Aircraft electronic equipment
- Electronic racks
- Communications equipment
- Fire truck and ambulance drawers
- Tech Specs
- Downloads
Commercial 2U Standard Features
- Slides: 370 Series steel slides
- Full extension, Lock open, ball bearing
- Shelf: Symmetrical and can be mounted as a shelf or a tray
- Disconnectable, and interchangeable
- Shelf slots are sized for #10 hardware
- Materials: Slide: Cold rolled steel
- Shelf: Black power coated
- Finish: Slides: Commercial zinc
- Shelf: Black powder coated
- Load rating: Up to 165 lbs
- Cable management attachment ready
- Front panel fasteners lock tray closed
T2U-100
T2U-100 Catalog Drawing
T2U-100S

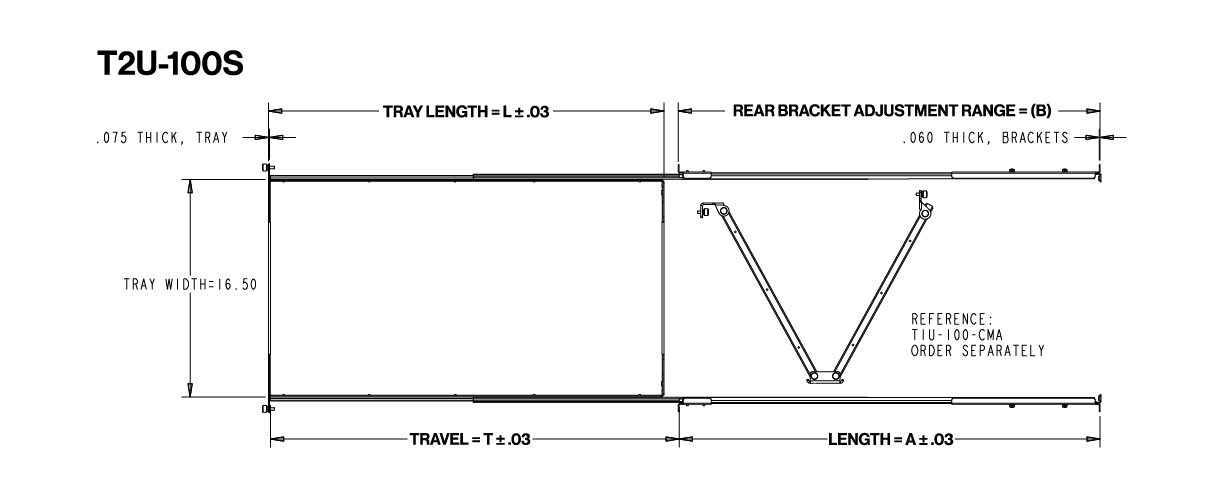

T2U-100S Catalog Drawing
T2U-100

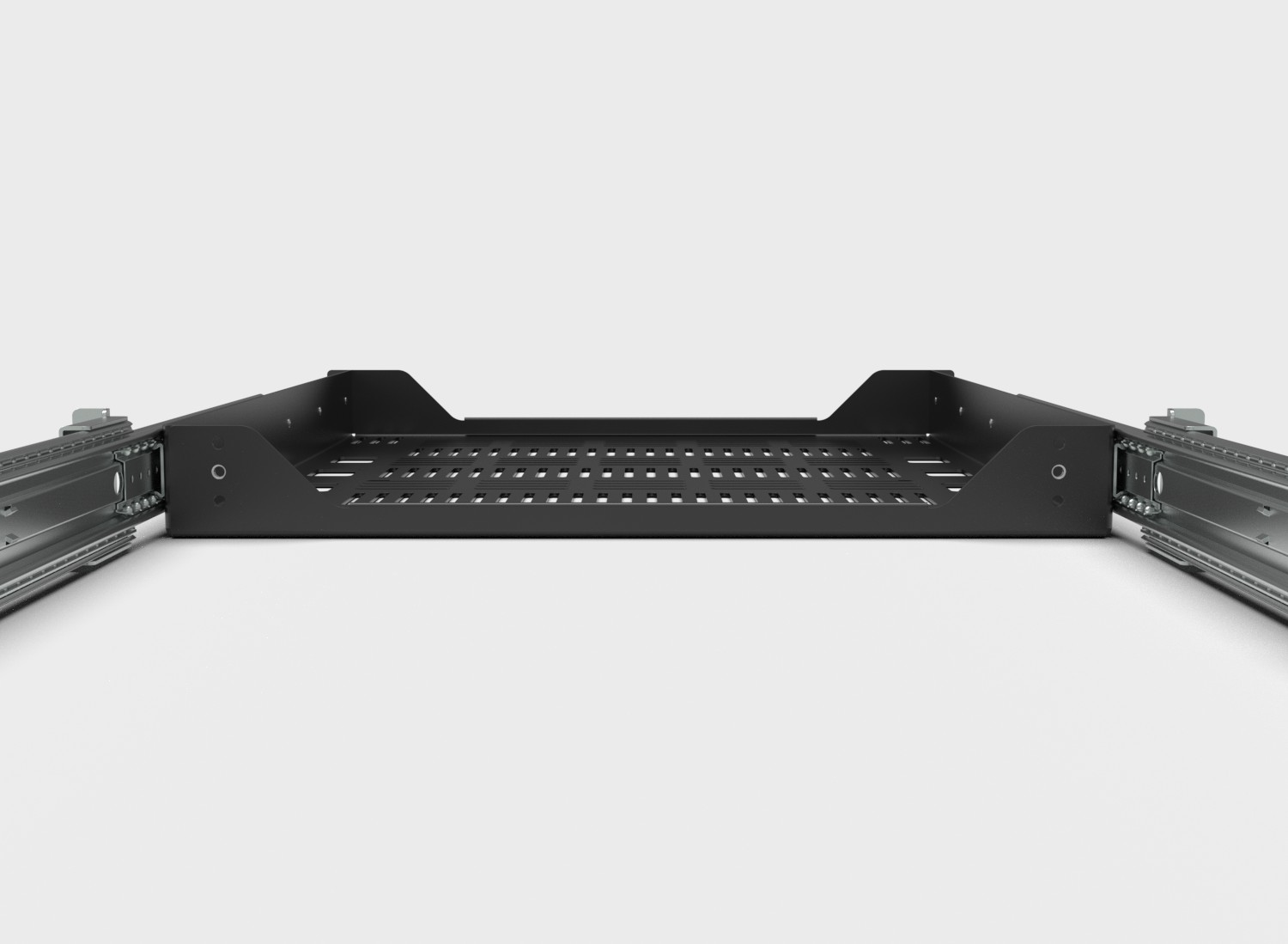

The T2U-100 is made standard with routed holes for weight-relief, fastening, and thermal management. Option Cable Management available with kit.
T2U-100S
The T2U-100S from Jonathan Engineered Solutions is delivered standard with no routed holes in the tray/shelf, which allows for more secure storage. Custom trays can be made with specified hole patterns. Cable management is available with kit.
