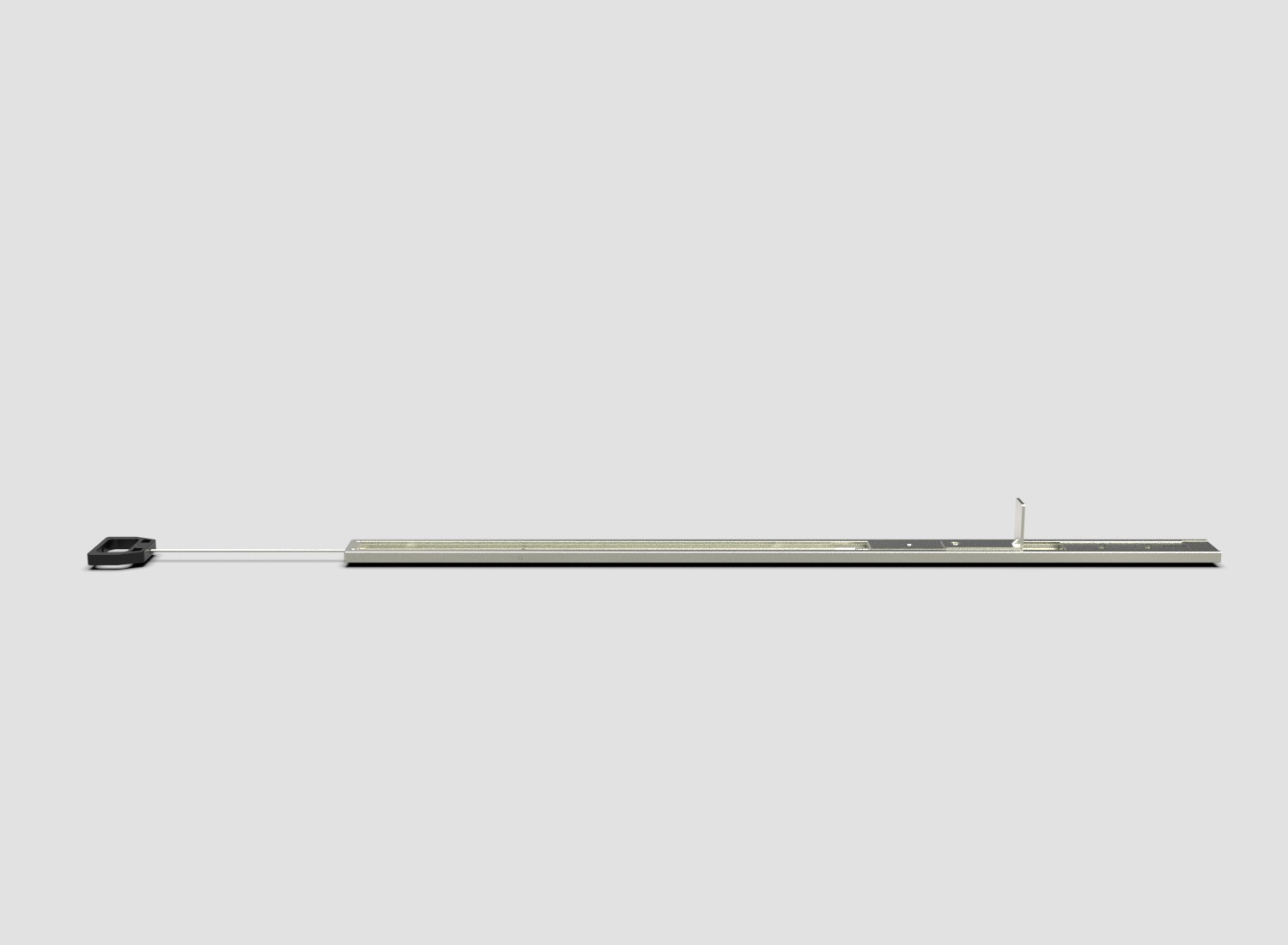

EXTR-1000 Heavy-Duty Aluminum Slides

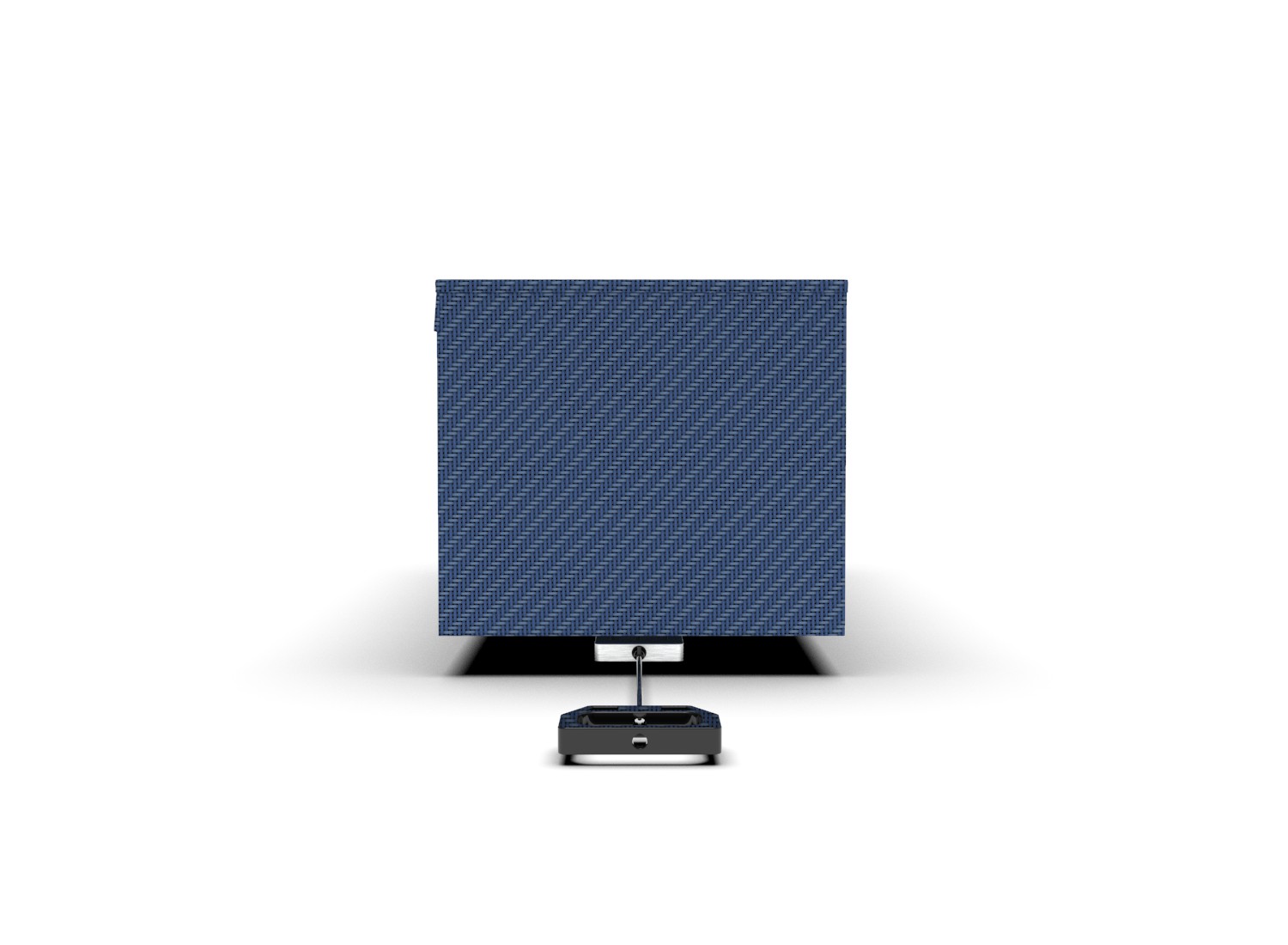

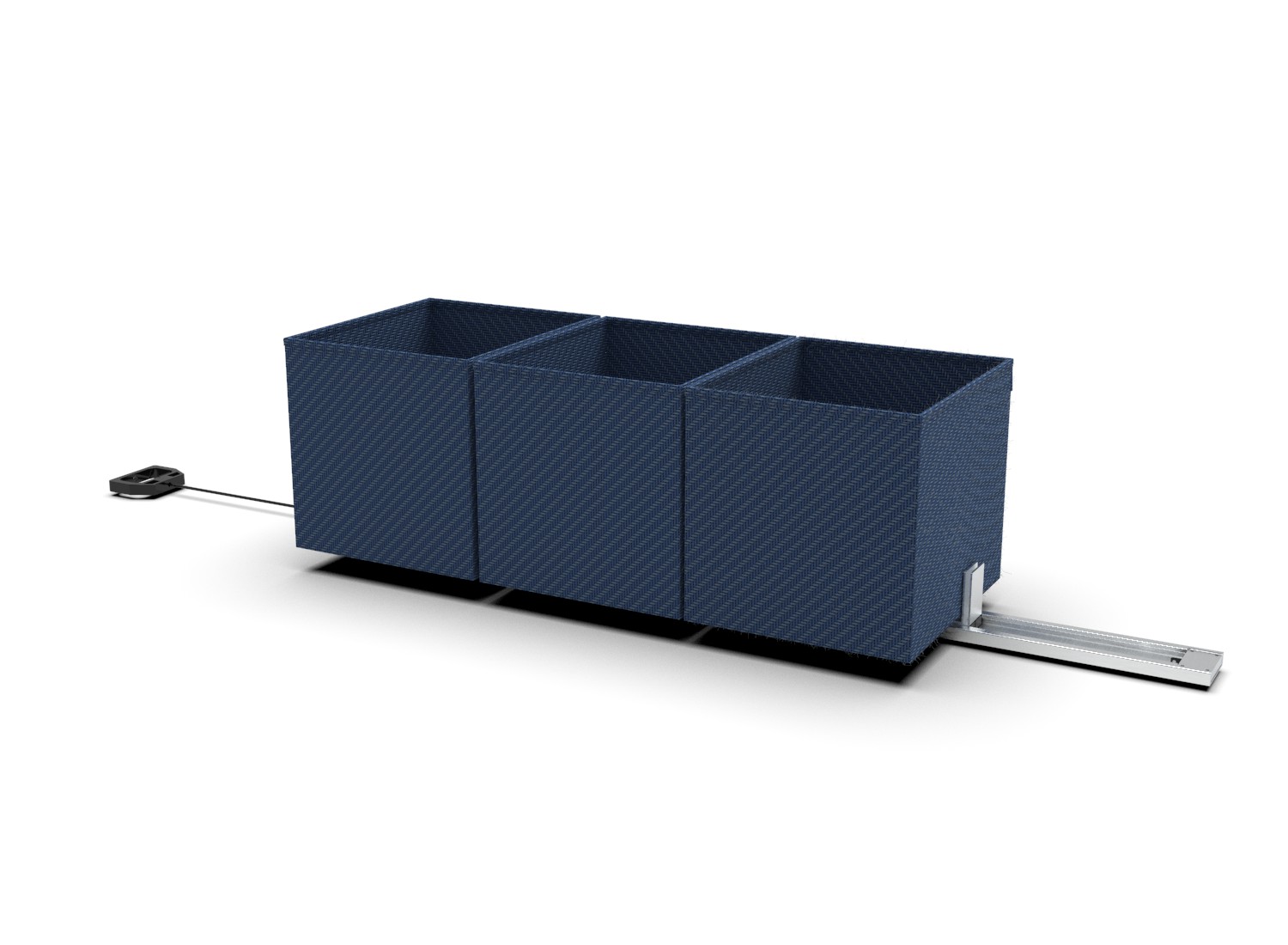

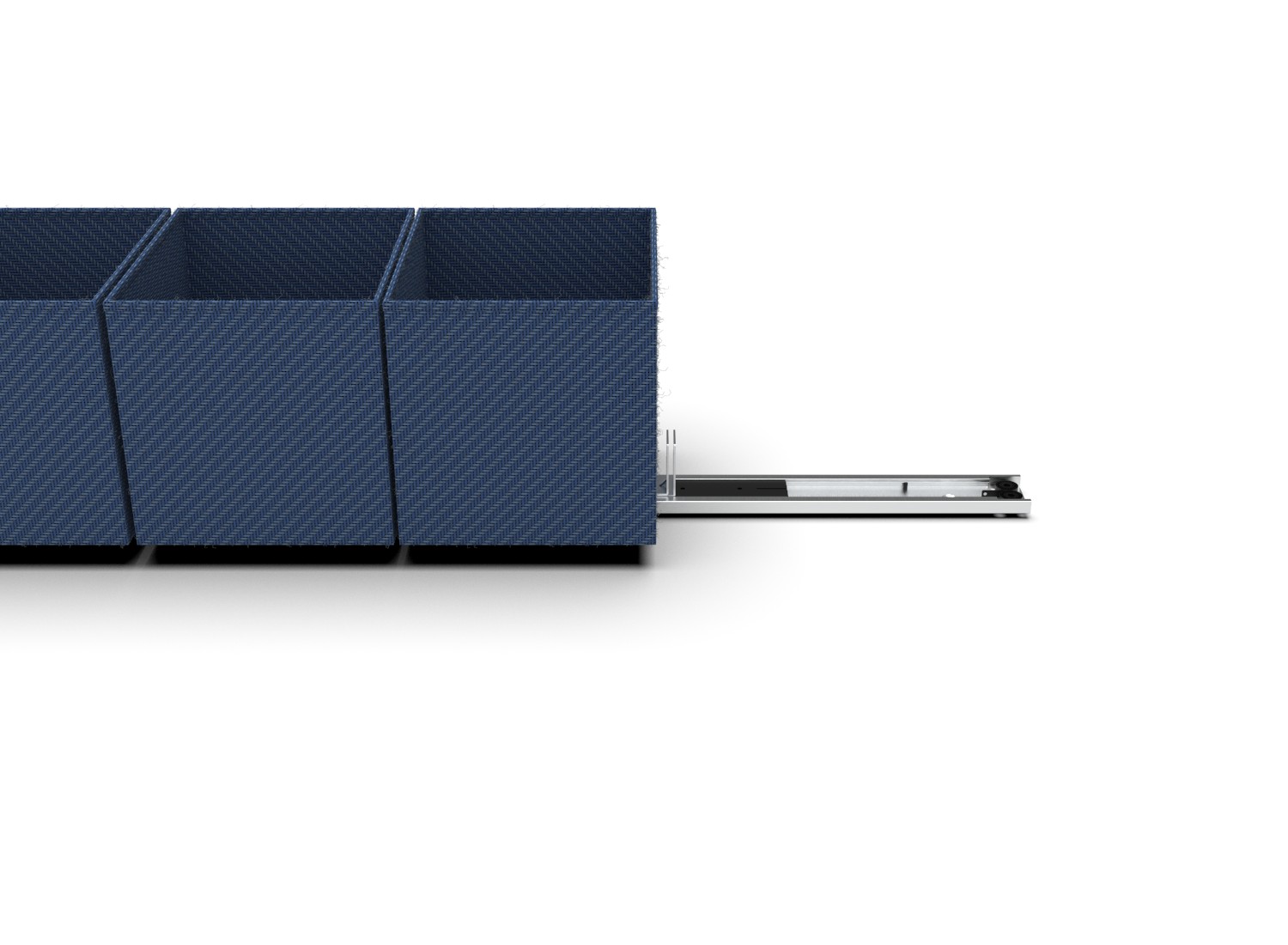

The EXTR-1000 is a pull-extractor designed specifically for aircraft galleys and other lightweight interior applications. JES offers 4 handle types for the extractor that can accommodate any requirement. The L-Bracket Carrier ranges from 1.5″ to 2.5″ depending upon the chosen length of the extractor.

Tech Specs
Downloads

EXTR-1000 Series Standard Features

Material
- High Strenght Aluminum Alloy
- Stainless Steel
- Plastic
- Nylon
Lengths: 21″ to 33.2″
Travel: 11.43″ to 19.5″
Finishes
- Clear Anodized (Aluminum)

EXTR-1000 Series

EXTR-1000 Catalog Drawing

Handle Variants

JES offers 4 variants of the handle for our pull-extractors. Use the drawing to when requesting the quote to indicate your choice of handle.
